Code 3 Machine Cast Lead Sheet
Code 3 Machine Cast Lead Sheet is the green-coded 1.32mm machine cast option for individual soakers, small cover flashings and narrow abutment work where a light sheet is sufficient. At 15.0 kg/m², it keeps weight down on repeated soaker details; send the drawing, girth or roof detail and we will quote the widths you need.
Dimensions
Thickness: 1.32mm · Weight: 15.0 kg/m² · Colour code: green

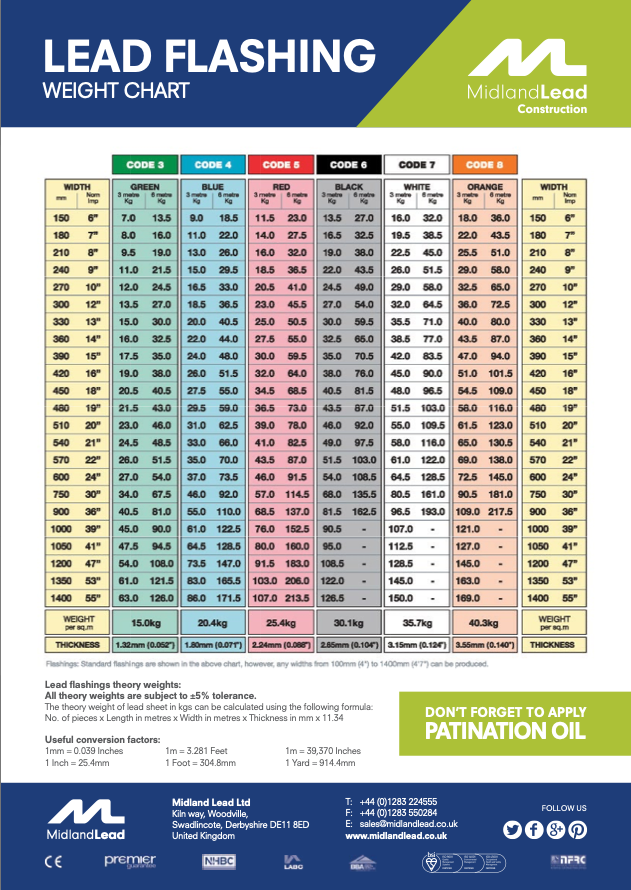

View full weight & size chart →Code 3 Machine Cast Lead Sheet specification
| Code | Code 3 |
|---|---|
| Thickness | 1.32mm |
| Weight | 15.0 kg/m² |
| Colour code | green |
| Material | Lead |
| Price | Price on application — send your measurements for a quotation |
Where to use Code 3 Machine Cast Lead Sheet
Use Code 3 Machine Cast Lead Sheet for individual soakers, small cover flashings and narrow abutment work where a light sheet is sufficient. The green marking helps roofers keep this gauge separate from other codes when flashings, valleys and soakers arrive together on the same delivery.
About lead sheet and rolled lead - standards, guarantee and sizes.
Code 3 Machine Cast Lead Sheet — frequently asked questions
What makes machine cast Code 3 suitable?
Code 3 machine cast lead sheet keeps weight down on repeated soaker details. It belongs on individual soakers, small cover flashings and narrow abutment work where a light sheet is sufficient, subject to the roof detail.
What are the machine cast Code 3 figures?
Code 3 Machine Cast Lead Sheet: 1.32mm, 15.0 kg/m², green identification.
How is machine cast Code 3 measured?
Count the separate soakers or covers, then provide the girth and the postcode.
